COB Small Pixel Pitch With Low Power Consumption Energy Saving and High Contrast

Name: COB Small Pixel Pitch With Low Power Consumption Energy Saving and High Contrast
Brand: Visual World
Price: 1 USD

China COB Small Pixel Pitch With Low Power Consumption Energy Saving and High Contrast wholesale

Brand Name : Visual World

Model Number : P0.7 P0.9 P1.2 P1.5

Certification : EMC,CE,FCC,ROHS

Place of Origin : China

MOQ : Negotiatble

Price : Negotiatble

Payment Terms : T/T

Supply Ability : 5000 sqm/month

Delivery Time : 12 work days

Packaging Details : Plywood case, export carton box

Product Name : COB Small Pixel Pitch With Low Power Consumption Energy Saving and High Contrast Pixel Density

Brightness : 0-2000nits

Maintaince : Front Serviece

Cabinet Weight : 4.6kg

Cabinet Material : Die-casting Aliuminum

Pixel Pitch : P0.7 P0.9 P1.25 P1.5

Cabinet Dimension : 600x337.5mm

Warranty Time : 2 years

Operation Temp : -20°C~+50°C

Operational Humidity : 10%-90%RH

Installation Type : Mounting/Hanging/Stacking

Contact Now

COB Small Pixel Pitch With Low Power Consumption Energy Saving and High Contrast

Product Description:

Introducing our cutting-edge COB Small Pixel Pitch display, designed for exceptional clarity and vibrant visuals. With low power consumption, this energy-efficient solution delivers high contrast and superior pixel density, making it ideal for high-end applications where every detail matters. Experience enhanced performance while reducing energy costs, all in one sleek, powerful display

Product Features:

High Brightness and Contrast: Adjustable brightness up to 2000 nits for the P0.7 and P0.9 models, ensuring clear visibility in various lighting conditions. The P1.25 and P1.56 models provide brightness levels up to 1500 nits and 1000 nits, respectively.
Durable, Lightweight Design: Constructed with die-casting aluminum cabinets, each module weighs only 4.6 kg, making installation and transportation convenient.
Flexible Installation Options: Suitable for mounting, hanging, and stacking installations, enabling versatile usage in different settings.

Technical Parameters:

Model	P0.7	P0.9	P1.25	P1.56
Pixel Pitch	0.7mm	0.9mm	1.25mm	1.56mm
LED Type	COB	COB	COB	COB
Cabinet Dimensions	600337.535mm	600337.535mm	600337.535mm	600337.535mm
Module Size	150x168.75mm	150x168.75mm	150x168.75mm	150x168.75mm
Cabinet Weight	4.6kg	4.6kg	4.6kg	4.6kg
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Driving Type	1/36	1/36	1/27	1/48
Maintenance	Front service	Front service	Front service	Front service
Brightness	0-2000 nits	0-2000 nits	1500 nits	1000 nits
Max/Avg Power	390/136 W/m²	420/147 W/m²	330/100 W/m²	330/100 W/m²
IP Rating	Front: IP65 Rear: IP30	Front: IP65 Rear: IP30	Front: IP65 Rear: IP30	Front: IP65 Rear: IP30
Refresh Rate	>3840Hz	>3840Hz	>3840Hz	>3840Hz
Installation Type	Mounting, Hanging, Stacking	Mounting, Hanging, Stacking	Mounting, Hanging, Stacking	Mounting, Hanging, Stacking
Gray Scale	16bit	16bit	16bit	16bit
Viewing Angle	H:170°, V:170°	H:170°, V:170°	H:170°, V:170°	H:170°, V:170°
Operational Temp	-20°C~+50°C	-20°C~+50°C	-20°C~+50°C	-20°C~+50°C
Operational Humidity	10%-90%RH	10%-90%RH	10%-90%RH	10%-90%RH

Our Advantage:

COB Small Pixel Pitch With Low Power Consumption Energy Saving and High Contrast

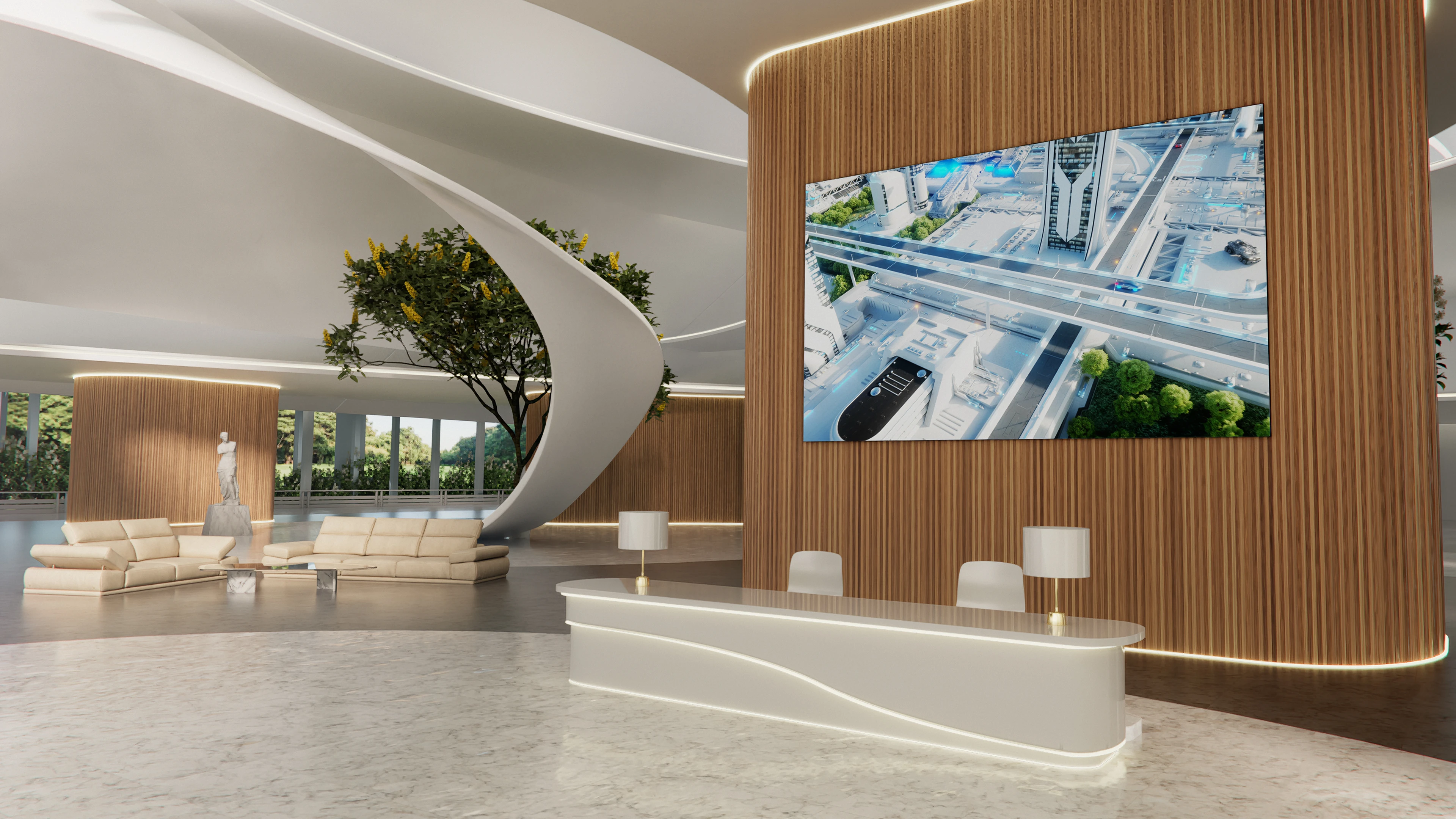

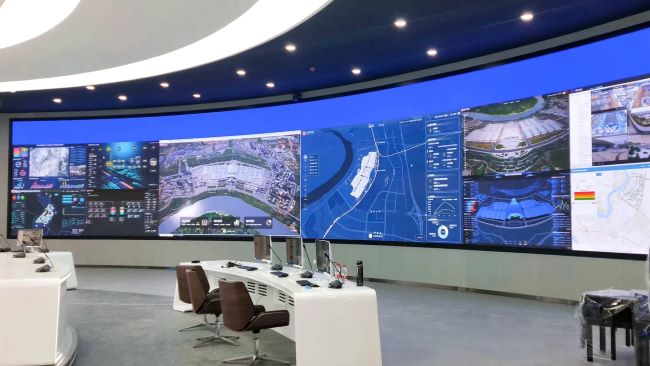

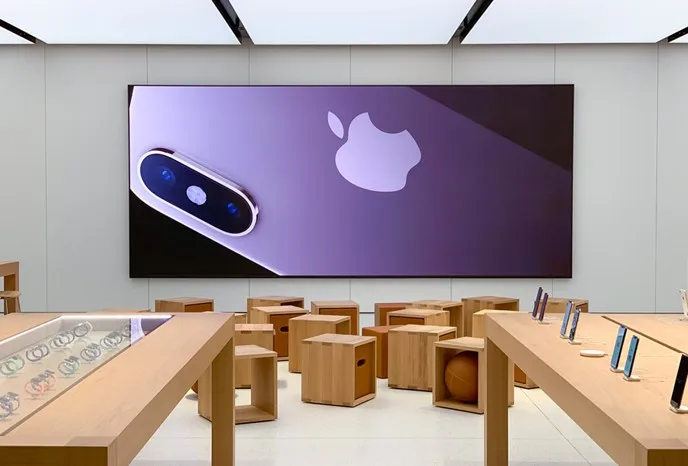

Application:

COB Small Pixel Pitch With Low Power Consumption Energy Saving and High Contrast

FAQ:
Q1: What control system is used, and how does it work?
A1: We use the Nova Taurus Series asynchronous control system, which supports cluster playback and management. You can easily control it via various devices, including APP, smartphone, Wi-Fi, iPad, laptop, PC, or through cloud control. It's very user-friendly and convenient.

Q2: Can I place a sample order for an LED screen?
A2: Yes, we encourage sample orders for testing and quality evaluation. Mixed samples are also accepted.

Q3: Can I have my logo printed on the product?
A3: Absolutely. Please let us know in advance and confirm the design based on our sample before production begins.

Q4: What is your delivery time?
A4: Typically, delivery takes 7-15 days after the deposit is received. However, the exact time depends on the order size and items.

Q5: What is your warranty policy?
A5: We offer a 2-year warranty. We also provide full support for structure design, installation issues, system troubleshooting, and screen usage.
Our professional after-sales team, along with your dedicated sales engineer, will assist with any questions you may have after your order.
